Unity & Warudo SDK Installation

caution

Currently only 64-bit Windows systems are supported.

Step 1 - Install Unity Hub​

Firstly, you need to download Unity Hub (usually the latest version is OK).
Unity Hub is a software used to manage different versions of the Unity Editor and projects at these different versions.

Open the Unity official website and click one of the two red boxes in the image below to download Unity Hub. Downloading may require registering a Unity account.

Run the downloaded UnityHubSetup.exe and install it to your preferred path.
After installation, confirm that it can be opened correctly.

After logging in, it will automatically suggest you download the latest Long-Term Support (LTS) version of the Unity Editor,
Warudo does not use this version, it is recommended to click Skip installation.

But if you do indeed want to install that version, we strongly recommended you to change the installation path to ...\<version> (for example, D:\Softwares\Unity\2022.3.17f1),
to more conveniently manage multiple versions of the Unity Editor,
and not to use the default installation path C:\Program Files\Unity\Hub\Editor.

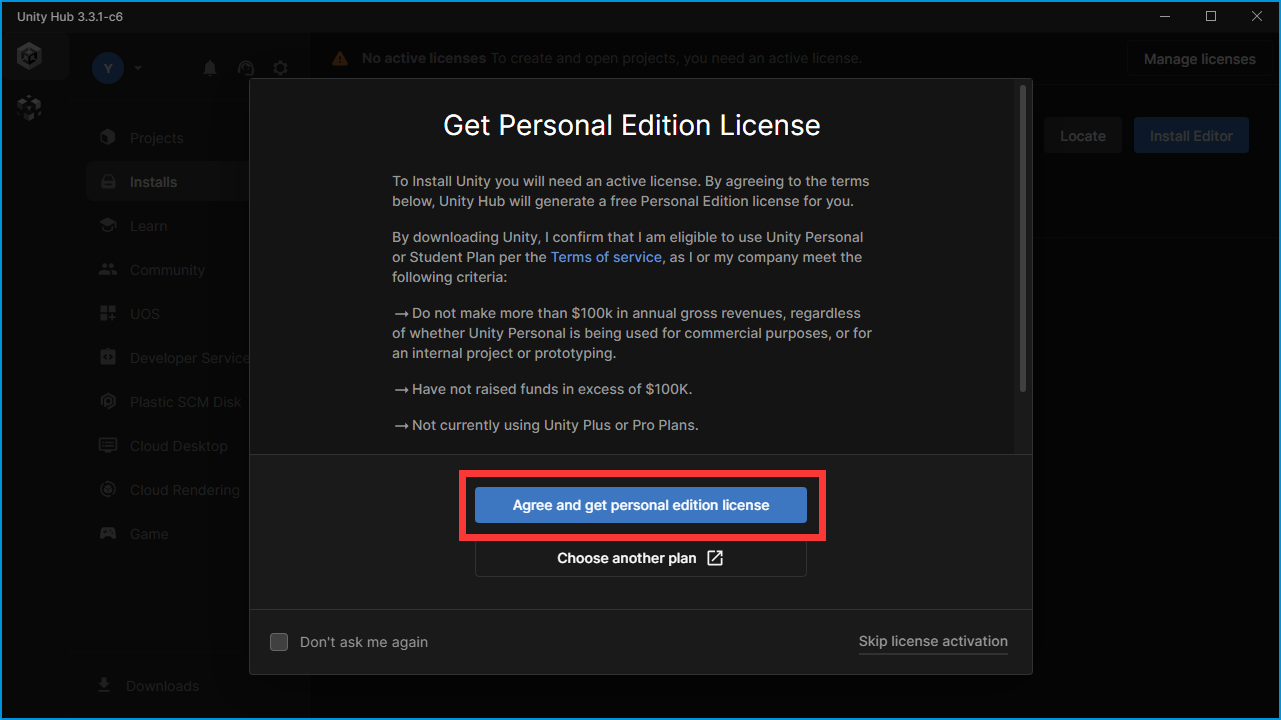

If you meet the terms for Unity's Personal Edition, you can choose to activate and obtain a personal license here.

If you skipped activation in the previous step or activation failed, you can also manually activate the license later in Unity Hub.

You can change the language of Unity Hub in 【Preferences】-【Appearance】.

Step 2 - Install Unity Editor​

Next, you need to download the installer of Unity Editor, and the version must strictly be Unity 2021.3.18f1.

This version cannot be downloaded directly via Unity Hub, you need to:

  1. Go to Unity Download Archive;
  2. Under the 【Unity 2021.X】 tab, find 【Unity 2021.3.18 (February 1, 2023)】;
  3. Click on 【Downloads (Win)】;
  4. Select 【Unity Editor (64-bit)】;
  5. Wait for 【 UnitySetup 64-2021.3.18f1.exe 】 to finish downloading (approximately 2.3 GiB);

Next, run UnitySetup 64-2021.3.18f1.exe to start the installation.

The default installation location is C:\Program Files\Unity 2021.3.18f1, you may change it, but it is recommended to contain the version number in the path to avoid version conflicts.

The installation will take a long time, please be patient.

After installation, you need to:

  1. Open Unity Hub;
  2. Click on 【Installs】-【Locate】;
  3. Find the installation path you selected earlier, then enter the 【Editor】 subfolder, and find 【Unity.exe】;
  4. After selecting, click on 【Select Editor】.

At this point, 2021.3.18f1 version of Unity.exe will be correctly displayed in Unity Hub.

Step 3 - Download & Import Warudo SDK​

There are two ways to set up the Warudo SDK in Unity:

  • Download our modding project template,
  • Manually import the SDK .unitypackage into your project.

We recommend the first option, as it is easier and less error-prone.
The second option is more suitable for updating an existing modding project.

Warudo SDK 0.12.0 Modding Project.zip

  1. Download the zip package file above and Extract the contents anywhere, say D:\Softwares\Unity\2022.3.17f1\Projects\WarudoModding.

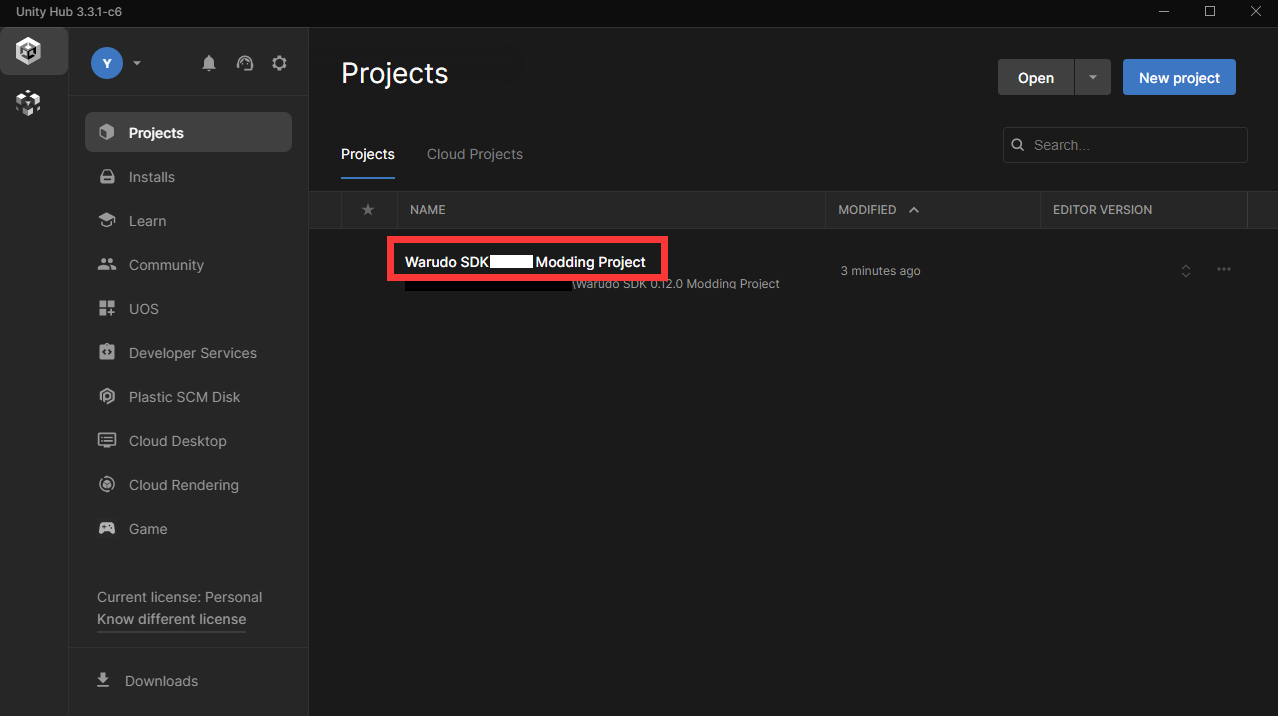

  2. In Unity Hub, click on "Add" and select the folder above.
  3. Then wait for Unity to launch the project. When you open the mod project for the first time, Unity can take 5-10 minutes to set up the project.

Check the console for any errors, a few warnings may appear, which is normal.:

If there are none, you are all set! Now go ahead and create your first mod.

tip

If you see errors in the console, try click on "Clear" to see if these errors can be removed. If you are still having trouble, please reach out to us on Discord.

caution

You should only use this option if you are updating an existing modding project, or in the very rare case, the first option does not work for you.

After opening the Unity project, open the Packages/manifest.json file under your Unity project folder (note that this file is not visible in the Unity editor) and add the following 9 dependencies in the dependencies section:

{
  "dependencies": {
    "com.unity.burst": "1.7.2",
    "com.unity.cinemachine": "2.8.9",
    "com.unity.collections": "1.4.0",
    "com.unity.postprocessing": "3.2.2",
    "com.unity.nuget.newtonsoft-json": "3.0.2",
    "com.vrmc.gltf": "https://github.com/vrm-c/UniVRM.git?path=/Assets/UniGLTF#v0.107.0",
    "com.vrmc.univrm": "https://github.com/vrm-c/UniVRM.git?path=/Assets/VRM#v0.107.0",
    "com.vrmc.vrmshaders": "https://github.com/vrm-c/UniVRM.git?path=/Assets/VRMShaders#v0.107.0",
    "com.cysharp.unitask": "https://github.com/Cysharp/UniTask.git?path=src/UniTask/Assets/Plugins/UniTask",
    // ...

Return to Unity and wait for the project to reload; make sure there are no errors.

caution

If you encounter an error with the message An error occurred while resolving packages / Error adding package clicking on it reveals a message similar to No 'git' executable was found. Please install Git on your system then restart Unity and Unity Hub, it means that Git is not installed on your system.

To resolve this issue, you need to download Git from https://git-scm.com/download and then restart both Unity and Unity Hub.

Confirm that the Api Compatibility Level in File → Build Settings... → Player Settings... → Other Settings is set to .NET Framework.

Download the following .unitypackage and import it into your Unity project:

Warudo SDK 0.12.0.unitypackage
caution

If you are importing into an existing project, and you have any of the following installed:

Please uncheck the corresponding folders from import, or your components will be replaced by stub files:

  • Plugins/Animancer
  • Packages/DynamicBone
  • Plugins/RootMotion/FinalIK
  • Plugins/MagicaCloth
  • Plugins/RootMotion/PuppetMaster

Check the console for any errors. If there are none, you are all set! Now go ahead and create your first mod.

tip

If you see errors in the console, try click on "Clear" to see if these errors can be removed. If you are still having trouble, please reach out to us on Discord.
